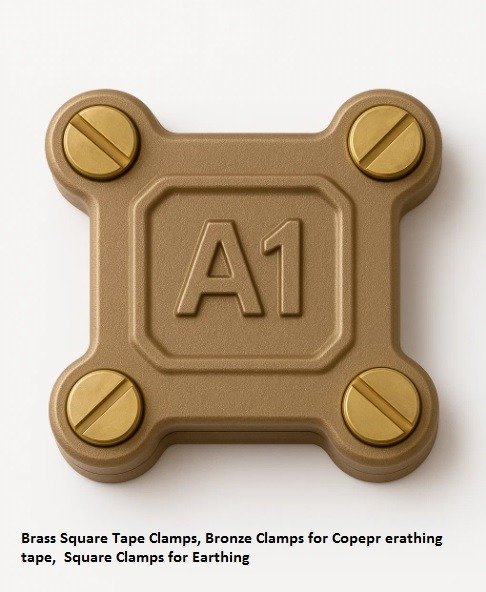

Brass Square Clamps for Copper Tapes | Bronze Tape Clamps for Earthing Applications
PRICE: $ 10.40/Kilogram
Brass Square Tape Clamps and Bronze Tape Clamps are essential components in earthing and lightning protection systems. Designed to securely connect copper earth tapes to structural steel or rebar, these clamps provide robust, corrosion-resistant grounding connections in electrical, industrial, and lightning protection installations. With their heavy-duty square profile, high-strength brass or bronze body, and precision-machined brass fasteners, these clamps ensure long-lasting mechanical and electrical performance in all weather conditions.
Product Features
-
✔️ Material Options: Available in high-conductivity Brass (CuZn39Pb3 / CW614N) and Bronze (High-Tensile Bronze / Gunmetal).
-
✔️ Corrosion Resistant: Suitable for outdoor and underground use.
-
✔️ Robust Design: Four-screw tightening for secure connection to copper tapes.
-
✔️ Easy Installation: No special tools required.
-
✔️ Standards: Manufactured to meet or exceed BS EN 62561-1, IEC 62561, and IS/IEC 62305 standards.
Brass Square Clamps for Copper Tapes
Brass square clamps are essential components in electrical grounding and bonding systems, specifically designed to secure flat copper tapes used in earthing and lightning protection applications. These clamps are manufactured from high-quality brass, an alloy of copper and zinc, which ensures excellent electrical conductivity and corrosion resistance—critical for long-term performance in harsh environments. The square design allows for a secure and uniform connection with copper tapes, minimizing contact resistance and ensuring efficient current dissipation. These clamps are widely used in power substations, telecommunication towers, industrial plants, and railway earthing systems due to their durability and reliability. They often feature mechanical fastening mechanisms such as bolts or screws to maintain a tight grip on the tape, preventing loosening due to thermal expansion or vibration. Brass square clamps are also preferred in applications where galvanic corrosion must be avoided, as brass is compatible with copper, reducing the risk of electrolytic degradation. Compliance with international standards such as UL 467, IEC 62305, and ASTM B124 ensures their suitability for critical electrical safety applications. We also offer Brass and bronze Tape clips and DC Clips for exports.
Bronze Tape Clamps for Copper Earthing Systems
Bronze tape clamps are heavy-duty connectors used in grounding and bonding systems to securely fasten copper earth tapes, providing a low-resistance path for fault currents and lightning strikes. Made from high-strength bronze alloys, often phosphor bronze or aluminum bronze, these clamps offer superior mechanical strength, corrosion resistance, and thermal stability compared to pure copper or brass alternatives. Bronze’s natural resistance to seawater and soil corrosion makes these clamps ideal for marine installations, coastal substations, and underground earthing grids. The clamps typically feature a robust clamping mechanism, such as U-bolts or pressure plates, to ensure a permanent and vibration-resistant connection. Their high conductivity ensures minimal energy loss, making them suitable for high-voltage applications, including power plants, wind turbines, and lightning protection networks. Additionally, bronze tape clamps are often used in exothermic welding-free systems where mechanical connections are preferred for ease of installation and maintenance. These clamps meet stringent industry standards, including IEC 62561 and IEEE 80, ensuring reliability in critical electrical safety systems. Their ability to withstand extreme weather conditions and mechanical stress makes them a preferred choice for long-term grounding solutions.
Material Grades
| Material | Composition / Standard | Corrosion Resistance | Typical Use |
|---|---|---|---|
| Brass | CW614N (CuZn39Pb3), ASTM B16 | Good | Above-ground earthing |
| Bronze | High-Tensile Bronze / LG2 / HTB1 Phosphor Bronze Pb1 Pb2 | Excellent | Harsh, marine, underground |
Standard Sizes and Tape Compatibility
| Product Code | Tape Size (mm) | L (mm) | W (mm) | H (mm) | Weight (kg) | Pack Qty | Material |
| A1MG 253 | 25 x 3 | 50 | 50 | 13 | 0.15 | 25 | Brass |
| A1MG 254 | 25 x 4 | 50 | 50 | 15 | 0.16 | 25 | Brass |
| A1MG 255 | 30 x 3 | 50 | 50 | 15 | 0.25 | 25 | Brass |
| A1MG 256 | 30 x 4 | 50 | 50 | 15 | 0.25 | 25 | Brass |
| A1MG 302 | 30 x 6 | 56 | 56 | 17 | 0.2 | 25 | Brass |
| A1MG 305 | 31 x 6 | 56 | 56 | 17 | 0.2 | 25 | Brass |
| A1MG 313 | 31 x 8 | 56 | 56 | 19 | 0.22 | 25 | Brass |
| A1MG 316 | 38 x 3 | 66 | 66 | 19 | 0.25 | 25 | Brass |
| A1MG 383 | 38 x 6 | 71 | 71 | 22 | 0.59 | 25 | Brass |
| A1MG 386 | 38 x 6 | 71 | 71 | 22 | 0.59 | 25 | Brass |
| A1MG 403 | 40 x 3 | 66 | 66 | 13 | 0.26 | 25 | Brass |
| A1MG 404 | 40 x 4 | 66 | 66 | 15 | 0.25 | 20 | Brass |
| A1MG 405 | 40 x 5 | 66 | 66 | 18 | 0.28 | 20 | Brass |
| A1MG 503 | 50 x 3 | 80 | 80 | 16 | 0.5 | 10 | Brass |
| A1MG 504 | 50 x 4 | 80 | 80 | 22 | 0.52 | 10 | Brass |
| A1MG 508 | 50 x 8 | 80 | 80 | 27 | 0.68 | 10 | Brass |
| A1MPB 253 L | 25 x 3 | 70 | 70 | 25 | 0.86 | 25 | Phosphor Bronze |
| A1MA 253 | 25 x 3 | 50 | 50 | 13 | 0.07 | 25 | Aluminium |
| A1MA 406 | 40 x 6 | 67 | 67 | 18 | 0.1 | 10 | Aluminium |
| A1MA 506 | 50 x 6 | 77 | 77 | 20 | 0.15 | 10 | Aluminium |
| Product Code | Size (mm) | Tape Size Supported (mm) | Material | Screw Material | Weight (g) |
|---|---|---|---|---|---|
| BSC-253-BR | 60×60 | 25×3 | Brass | Brass | 420 |
| BSC-253-BZ | 60×60 | 25×3 | Bronze | Brass | 440 |
| BSC-401-BR | 70×70 | 40×4 | Brass | Brass | 500 |
| BSC-401-BZ | 70×70 | 40×4 | Bronze | Brass | 520 |
Note: Custom clamp sizes can be manufactured on request for 50×6 or 75×6 mm copper tapes.
Applications
-
Grounding / Earthing systems in residential, commercial, and industrial electrical setups.
-
Lightning protection systems in buildings, substations, and renewable energy plants.
-
Corrosion-prone environments such as coastal or chemical plant areas (preferred: Bronze).
-
Renewable energy projects (solar power earthing structures).
-
Telecom tower grounding.
Installation Guide
-
Loosen all four screws using a flathead screwdriver.
-
Insert the copper earth tape into the designated channel of the square clamp.
-
Tighten the screws evenly in a crisscross pattern to ensure uniform pressure.
-
Ensure the clamp is secured and the tape is not able to move.
Advantages of Brass and Bronze Square Tape Clamps
| Feature | Brass Clamp | Bronze Clamp |
|---|---|---|
| Conductivity | Excellent | Very Good |
| Cost | Lower | Slightly Higher |
| Resistance to Acids/Sulfates | Moderate | High |
| Mechanical Strength | Good | Excellent |
| Appearance | Bright Yellow Finish | Dull Gold / Brownish Matte |
Ordering Information
To place an order, please specify the following:
-
Product Code (e.g., BSC-253-BZ)
-
Tape Size Compatibility
-
Quantity Required
-
Preferred Material (Brass or Bronze)
Bulk quantities available for OEM and industrial buyers.
Related Products
-
Brass U-Bolt Clamps for Pipes , Gunmetal Earth Rod Clamps , Copper-Bonded Earth Rods, Tinned Copper Braided Jumpers ,Brass Clamps, Bronze Clamps, Copper-Bronze Alloy Clamps, Phosphor Bronze Clamps, Naval Brass Clamps, Grounding Clamps, Earthing Clamps, Lightning Protection Clamps, Electrical Bonding Clamps, Copper Tape Connectors, Earth Bar Clamps, Square Tape Clamps, Flat Tape Clamps, U-Bolt Clamps, Parallel Groove Clamps, Exothermic Welding Clamps, UL 467 Listed Clamps, IEC 62305 Compliant, ASTM B124/B633 Compatible, Copper Earth Tape, Grounding Rods, Cable Lugs,
Need help selecting the right clamp? Contact our sales engineers by email or call for expert guidance.
