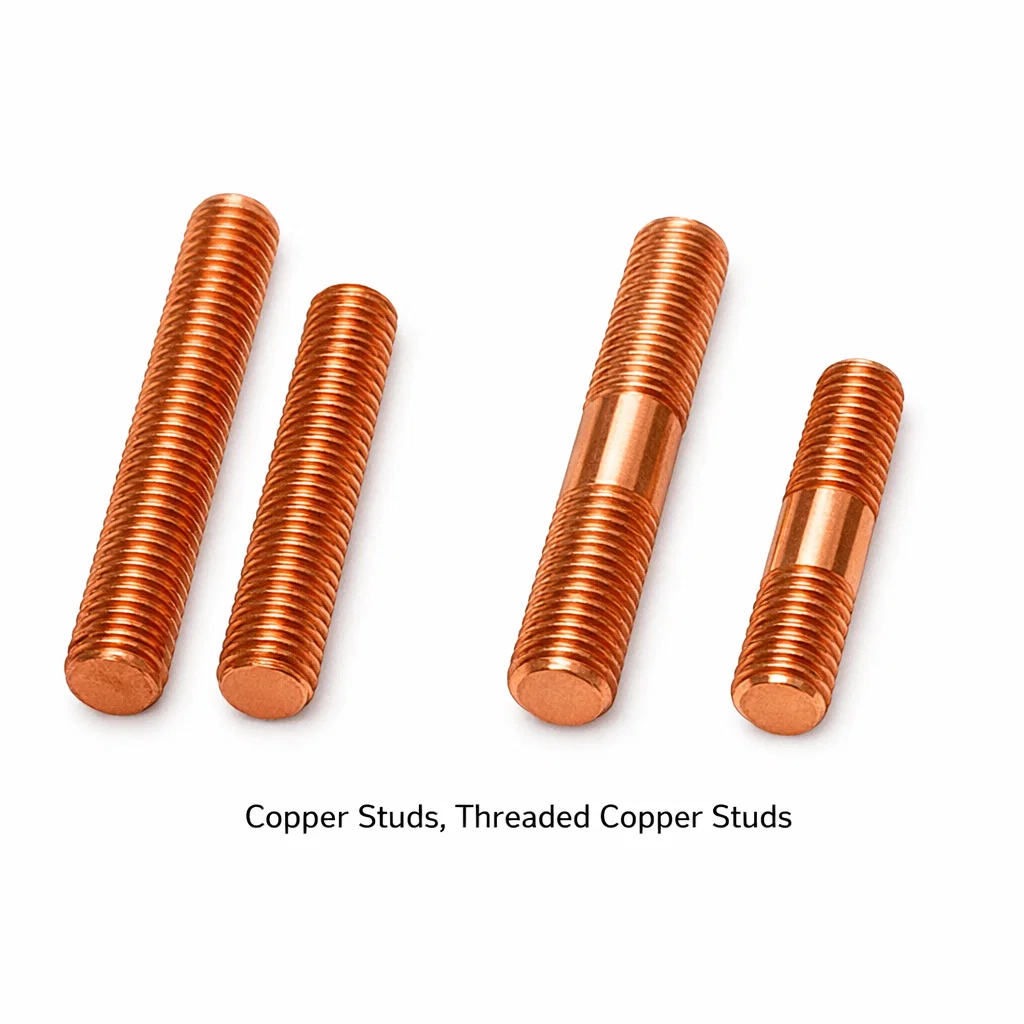

Copper Threaded Studs – Full Threaded & Half Threaded
A1 Metallics is a leading manufacturer and exporter of Copper Threaded Studs, including Full Threaded Copper Studs and Half Threaded Copper Studs (also known as double-end studs or stud bolts). Manufactured from high-conductivity copper and copper alloys, our threaded studs are widely used in electrical, power distribution, switchgear, busbar, and industrial applications across the globe.
Our copper threaded studs offer exceptional electrical conductivity, corrosion resistance, and mechanical strength – making them the preferred choice for OEM manufacturers, electrical panel builders, transformer manufacturers, and switchgear assemblers worldwide.
Types of Copper Threaded Studs
Full Threaded Copper Studs
Full threaded copper studs (all-thread studs / fully threaded rods) are threaded along the entire shank length. Used in terminal blocks, busbar connections, battery terminals, and electrical enclosures. Available in metric (M4–M36) and imperial (1/4″ to 1-1/2″) thread standards. Also referred to as: copper all-thread rods, copper threaded rods, copper stud bolts, copper binding posts.
Half Threaded Copper Studs (Double-End Studs)
Half threaded copper studs (double-end studs / stud bolts) feature a plain shank with threaded ends. Used in transformer terminations, high-voltage switchgear, motor terminals, and compressor connections. Available with equal or unequal thread lengths. Also known as: copper double-end studs, copper anchor studs, copper electrode studs, copper terminal studs.
Related Terms
Copper Stud Bolts | Copper All-Thread Rods | Copper Double-End Studs | Copper Terminal Studs | Copper Anchoring Studs | Copper Binding Posts | Copper Electrode Studs | ETP Copper Studs | Oxygen-Free Copper Studs | Copper Threaded Rods | Copper Bus Studs | Copper Grounding Studs | Copper Earth Studs | Copper Battery Terminal Studs | CNC Turned Copper Studs
Copper Grades & International Equivalents
| Grade | US (UNS) | European (EN) | Indian (IS) | British (BS) | Description |
|---|---|---|---|---|---|
| ETP Copper | C11000 / ASTM B187 | CW004A (Cu-ETP) | IS 191 ETP | BS C101 | 99.9% Cu, standard electrical grade, high conductivity |
| Oxygen-Free Copper | C10200 / ASTM B170 | CW008A (Cu-OF) | IS 191 OF | BS C103 | Ultra-high purity, >99.95% Cu, max conductivity |
| DHP Copper | C12200 | CW024A (Cu-DHP) | IS 191 DHP | BS C106 | Phosphorus deoxidized, weldable grade |
| Tellurium Copper | C14500 | CW118C (CuTeP) | — | BS 2874 C109 | Free-machining, ideal for precision threaded components |
| Chromium Copper | C18200 | CW105C (CuCr1) | — | — | High strength, suitable for heavy-duty studs |
Specifications & Standards
- Thread Standards: ISO Metric (M4–M36), UNC/UNF, BSW, BSF, BSP, BSPT
- Length Range: 10mm – 500mm (custom available)
- Surface Finish: Bright, Tinned, Nickel Plated, Silver Plated, Bare
- Manufacturing Standards: DIN 975, DIN 976, ASTM F837, ISO 965
- Tolerances: 6g/6H thread tolerance class
Applications
- Electrical panel boards and distribution boards
- Transformer terminals and busbar connections
- Battery terminals and electrode connections
- Switchgear and circuit breaker assemblies
- Motor terminal boxes
- Earthing and grounding systems
- Power generation and renewable energy equipment
Why Choose A1 Metallics?
- ✅ 25+ Years Manufacturing Experience – Trusted by global OEMs and electrical manufacturers
- ✅ ISO 9001:2015 Certified – Rigorous quality management systems
- ✅ Custom Sizes & Grades – Made-to-order per drawings, DXF files, or samples
- ✅ In-house Machining & Forging – Complete quality control from raw material to finished product
- ✅ Competitive Pricing – Direct manufacturer pricing with no intermediaries
- ✅ Global Export Expertise – Exporting to USA, UK, Germany, Australia, UAE, Canada and 40+ countries
- ✅ Material Certification – Mill test certificates and chemical composition reports provided
Request a Quote
Contact A1 Metallics for competitive pricing on Copper Threaded Studs. We supply prototype to full production volumes with fast turnaround.
