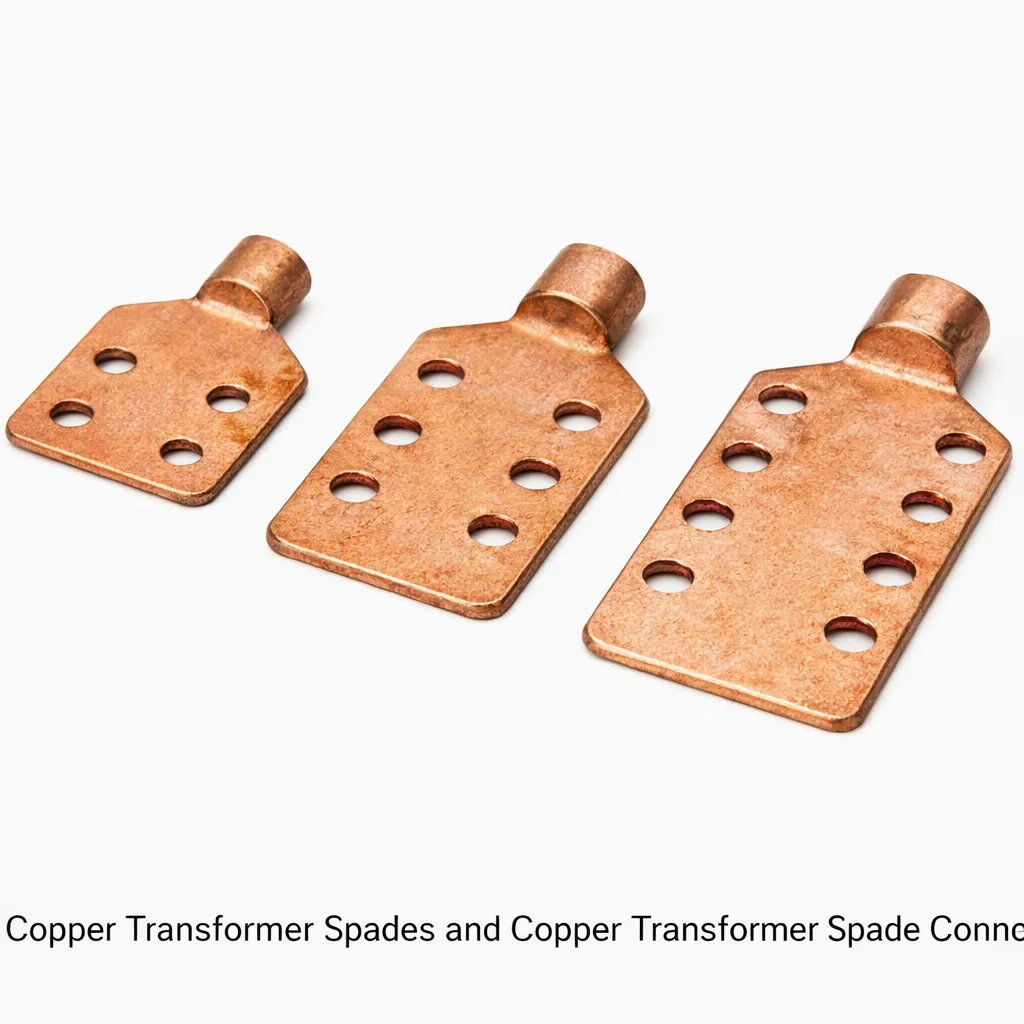

Copper Transformer Spades and Copper Transformer Connectors
A1 Metallics is a premier manufacturer and exporter of Copper Transformer Spades, Copper Spade Terminals, and Copper Transformer Connectors. Our copper spades and connectors are precision-engineered components used primarily in transformer manufacturing, power distribution, and high-voltage electrical systems. With over 25 years of expertise in non-ferrous metal fabrication, A1 Metallics delivers products that meet the most demanding performance and quality standards.
Copper transformer spades serve as the critical interface between transformer windings and external busbars or cabling. Their design ensures low contact resistance, high current-carrying capacity, and long-term reliability under thermal cycling and vibration stress.
Product Variants
Copper Spade Terminals
Flat, tab-shaped copper connectors forged or machined to fit onto transformer leads and bushings. Available with single or double holes, various pad sizes, and custom configurations. Also known as: copper lug terminals, copper flat terminals, copper tab connectors, copper tongue terminals.
Copper Transformer Eye Bolts & Spades
Combined spade-eyebolt designs used in oil-immersed and dry-type transformers. Provide both mechanical anchoring and electrical connection. Available tinned or bare copper.
Copper Compression Spade Connectors
Designed for crimping onto conductor ends with a spade terminal for transformer bushing connections. Available in various wire gauge ranges (AWG / mm² formats). Also known as: copper crimped spade connectors, copper crimp terminal lugs, copper spade lugs.
Copper Bus Spades & Flexible Copper Spades
Laminated flexible copper spades for applications requiring vibration absorption and thermal expansion compensation. Common in traction transformers and industrial power systems.
Related Terms & Variants
Copper Spade Lugs | Copper Tongue Terminals | Copper Eye Bolt Connectors | Copper Bushing Connectors | Copper Transformer Terminations | Copper HV Connector Spades | Copper LV Spade Terminals | Copper Tab Connectors | Copper Flat Connectors | Copper Crimped Spades | Copper Laminated Connectors | Copper Winding Terminations | Copper Transformer Hardware | Copper Power Connectors
Copper Grades & International Equivalents
| Grade | US (UNS/ASTM) | European (EN) | Indian (IS) | British (BS) | Typical Use |
|---|---|---|---|---|---|
| ETP Copper (C11000) | UNS C11000 / ASTM B187 | CW004A (Cu-ETP) | IS 191 Grade ETP | BS 2874 C101 | Standard transformer spades, busbars |
| Oxygen-Free Copper (C10200) | UNS C10200 / ASTM B170 | CW008A (Cu-OF) | IS 191 OF | BS 2874 C103 | High-purity, premium transformer applications |
| DHP Copper (C12200) | UNS C12200 | CW024A (Cu-DHP) | IS 191 DHP | BS 2874 C106 | Brazed and welded transformer assemblies |
| Silver-Bearing Copper (C11300) | UNS C11300 | CW005A (Cu-Ag) | — | — | High-temperature transformer connectors |
| Tellurium Copper (C14500) | UNS C14500 | CW118C (CuTeP) | — | BS 2874 C109 | Free-machining precision spade connectors |
Specifications
- Manufacturing Processes: Hot Forging, Cold Forging, CNC Machining, Pressing, Stamping
- Conductor Range: 16 mm² to 630 mm² (or as per customer spec)
- Hole Sizes: M6, M8, M10, M12, M16, M20 and custom
- Surface Finish: Bare Copper, Tin Plated, Silver Plated, Nickel Plated
- Standards: IEC 61238, DIN 46235, BS 4579, NEMA CC1
- Voltage Rating: Up to 36kV (as specified)
Applications
- Distribution transformers (oil-filled & dry-type)
- Power transformers and auto-transformers
- Instrument transformers (CT & PT)
- HV and LV switchgear panels
- Traction transformers (railway applications)
- Industrial furnace transformers
- Renewable energy step-up transformers
Why Choose A1 Metallics?
- ✅ Specialist Transformer Hardware Manufacturer – Deep expertise in transformer spades, eye bolts, and connectors
- ✅ ISO 9001:2015 Certified – Quality assured at every production stage
- ✅ Custom Engineering – Designed to OEM drawings, samples, or specifications
- ✅ In-house Forging & Machining – Seamless quality control from copper billet to finished component
- ✅ Multiple Surface Treatments – Tinning, silver plating, nickel plating in-house
- ✅ Proven Global Track Record – Supplied to transformer manufacturers in Europe, US, Middle East, and Asia
- ✅ Competitive Pricing & Short Lead Times – Flexible MOQ for prototype and production runs
