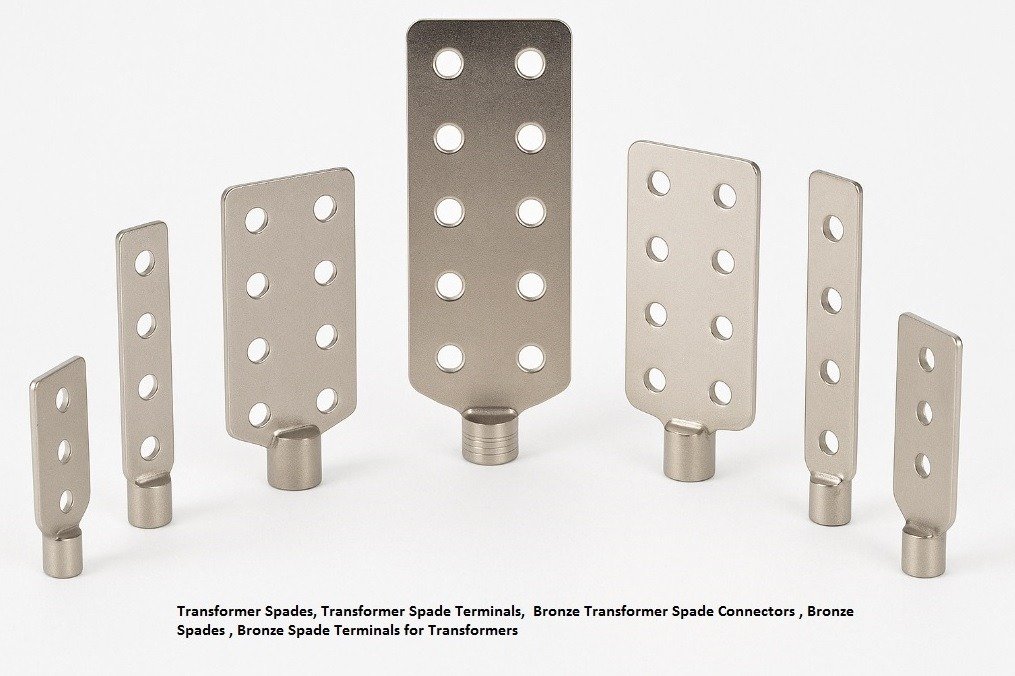

Transformer Spades, Transformer Spade Terminals, Bronze Transformer Spade Connectors , Bronze Spades , Bronze Spade Terminals for Transformers
Price: $ 11/Kilogram
High Quality Transformer Spades, Transformer Spade Terminals, Bronze Transformer Spade Connectors, Bronze Spades, Bronze Spade Terminals for Transformers
We are one of the leading manufacturers and exporters of Transformer Spades and Bronze Transformer Spade Terminals from India. We have been supplying these components to the world market for many decades. Our products are engineered for high-conductivity applications and are widely trusted by transformer manufacturers, electrical contractors, and utility companies across the globe. Each spade terminal is manufactured to ensure mechanical strength, corrosion resistance, and dimensional stability under high thermal and electrical loads. Whether for dry-type, oil-filled, or distribution transformers, our Bronze Transformer Spade Connectors are designed to meet stringent international standards. We offer NEMA spaced transformer connectors and transformer Spade terminals and Bushings for pole mounted transformers.
We offer a complete portfolio of standard as well as custom-made spades and terminals in Copper and Bronze alloys, with flexible production volumes and turnaround times. Our in-house tooling and CNC machining capabilities allow us to manufacture with precision and consistency, catering to both small batch requirements and large-volume contracts. We also provide customized packaging options with customer logo and labeling as required.
Transformer Spades : Transformer Spades are flat, perforated metallic connectors used to establish reliable electrical connections in transformer bushing terminals. Manufactured using high-conductivity Bronze or Copper alloys, these spades are designed to endure harsh operational environments. Typical applications include high-current bus bar interfaces and transformer winding terminations. Spades are punched with precision-machined holes for bolt fastening and come in rectangular, round, or custom profiles.
Transformer Spade Terminals : Transformer Spade Terminals are terminal-end fittings shaped like a flat blade or fork, used in securing electrical conductors to transformer terminals. These parts are fabricated using stamping and CNC machining processes from Bronze or Copper sheets and are surface-finished to improve conductivity and oxidation resistance. They are essential components in ensuring low-resistance electrical paths in transformers.
Bronze Transformer Spade Connectors : These connectors are specifically made using high-strength Bronze alloys (like CuSn5, CuSn6, or CuZn33) which offer a blend of excellent conductivity and mechanical durability. Bronze Transformer Spade Connectors are typically used in medium- and high-voltage applications where thermal fatigue and corrosion can be critical concerns. They are often electro-tinned or silver-plated as per application demands.
Bronze Spades: Bronze Spades are manufactured using CDA 510, IS 318 LTB2, or BS 1400 LG2 grades of Bronze. These are fabricated via stamping, pressing, and CNC machining, followed by surface finishing processes. Bronze Spades ensure strong mechanical performance and are suitable for rugged field installations.
Bronze Spade Terminals for Transformers : These are the final connection elements mounted on transformer bushing studs or terminals to connect conductors. We offer these terminals in multiple hole configurations and plating options (Tin, Nickel, Silver). They can be supplied with flanged or threaded stems depending on the bus bar interface or transformer flange design.
Material Grades Used
- CuZn39Pb3 (CW614N) – EN12164/12165
- CuSn6 – DIN 17662
- IS 318 LTB2 – Indian Standard Bronze
- CDA 510 / 521 – ASTM B139
Manufacturing Processes & Machinery
- Precision Casting Foundry, bronze casting foundry
- Bronze Drilling slotting NEMA spaced holes
- Power Presses (20T – 100T)
- CNC Turning Centers
- Deburring and Edge Rounding Stations
- Plating (Electro-Tin, Silver)
- Dimensional Inspection with Digital Vernier, Profile Projectors

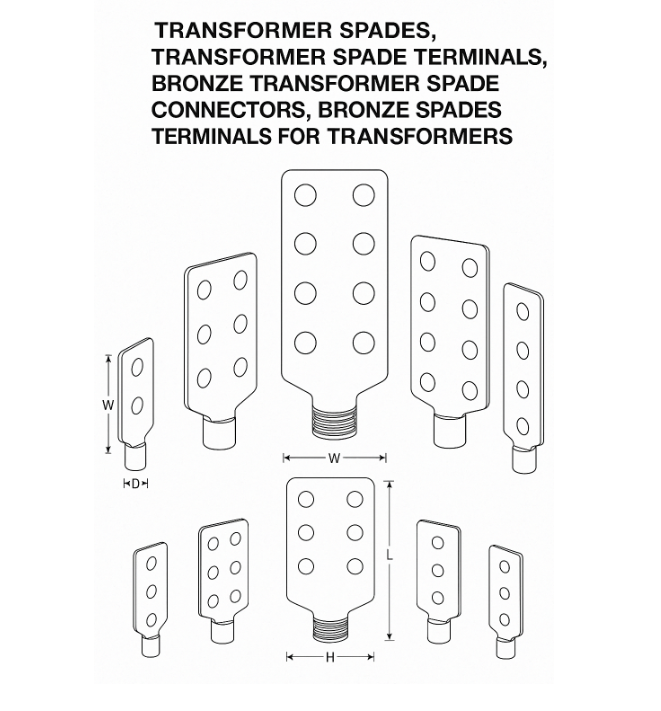

Dimensional Range (mm)
| Spade Width | Hole Diameter | Hole Spacing | Number of NEMA Spaced Holes |
|---|---|---|---|
| 20–75 | 6.5–13 | 20–40 | 2, 4, 6, 8, 10, 12, 16 |
Finish Options
- Electro-Tin Plated
- Silver Plated
- Nickel Plated
- Natural Polished (Bronze)
Industries Using These Products
- Transformer Manufacturing
- Electrical Utilities
- Power Distribution Equipment
- Renewable Energy Systems
Tolerances
- General: ±0.1 mm
- Hole to Hole: ±0.05 mm
Turnaround Time: 4–6 weeks
Performance Metrics
- Thermal Conductivity: ≥ 60 W/mK
- Tensile Strength: 250–400 MPa (depending on grade)
- Max Operating Temp: 120–150°C
- Corrosion Resistance: 500+ hrs salt spray (with plating)
Typical Customer Questions
- Can I get these with custom hole patterns?
- Are these available in both tinned and silver-plated options?
- Do you provide inspection reports with each shipment?
- Can these be used for high-temperature applications?
- What packaging options are available?
- Do you offer RoHS-compliant plating?
- What certifications do you provide?
- Can you manufacture based on customer drawings?
- How long is your typical lead time?
- Do you offer repeat order consistency guarantees?
Why Choose Us? With over three decades of global export experience, we are known for:
- Faster turnaround and on-time delivery
- Flexible production schedules
- Excellent communication and technical support
- In-house R&D and prototyping for new designs
- Custom labeling and packaging with client branding
- Quality assurance through 100% dimensional checks
Customer Testimonial “We’ve been sourcing Bronze Transformer Spades from Conex India for over 5 years. The quality, responsiveness, and attention to our custom packaging needs have been excellent. Our field reliability has improved since switching to their connectors.”
— Mark Stevenson, Michigan, USA
Glossary of Terms
- Spade Terminal: Flat metal connector with holes, used to attach cables to transformer terminals.
- Bronze: A Copper-based alloy typically containing Tin or Zinc, used for mechanical and conductive applications.
- Plating: A surface coating applied to improve conductivity or corrosion resistance.
- Tolerance: Permissible limit of variation in a physical dimension.
